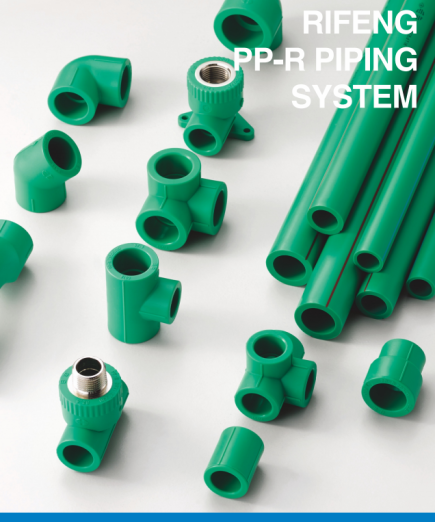

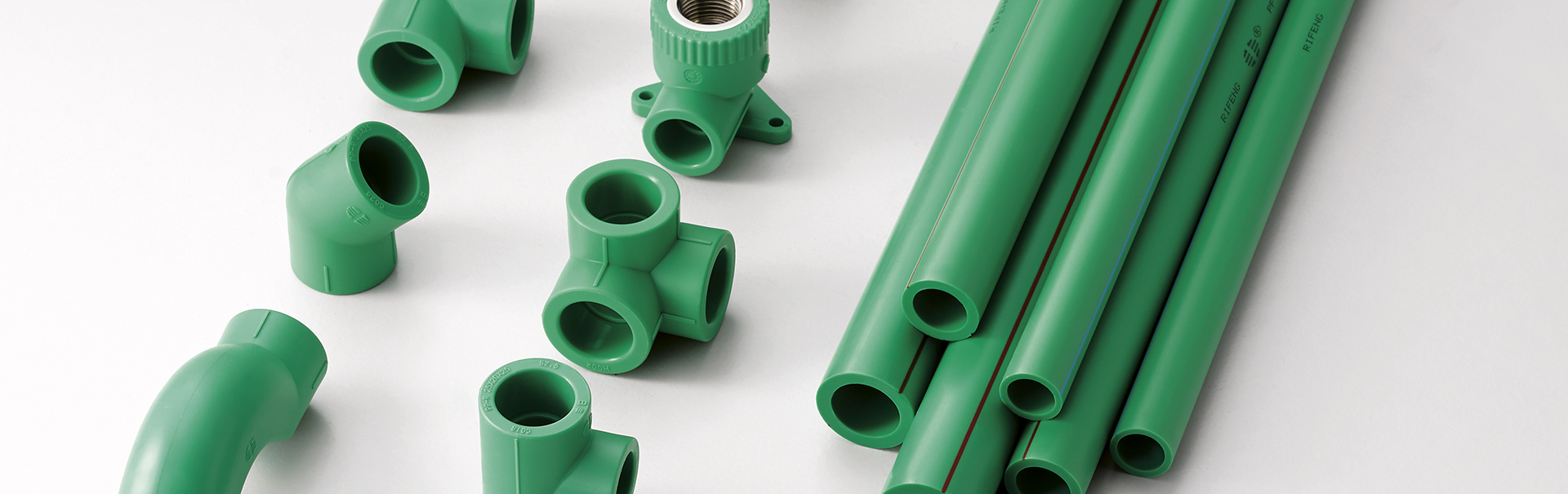

RIFENG PP-R plumbing system, made out of high-quality polypropylene random copolymer, can be utilized in both residential and commercial buildings.
? Full diameter, water flow increases by 200%.
? Three NBR seal rings to prevent leakage.

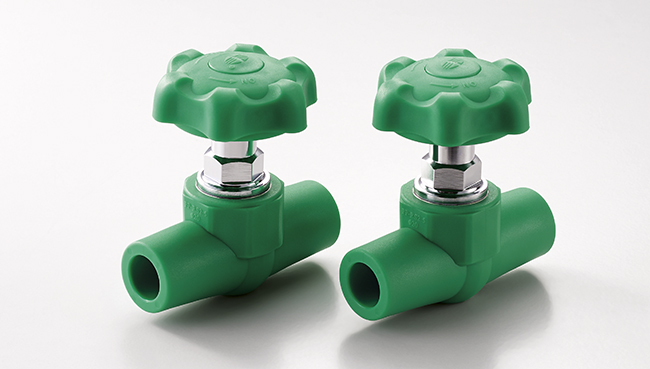

? High-quality brass of the valve spool, which makes it more durable.
?
?

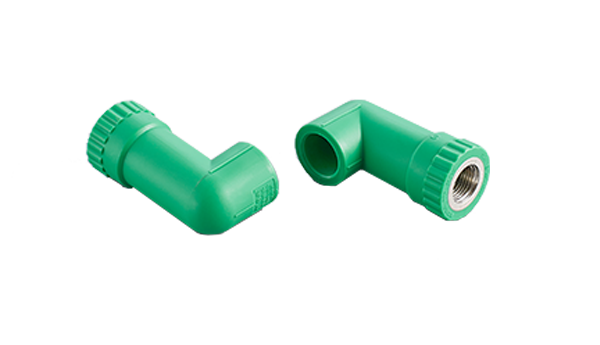

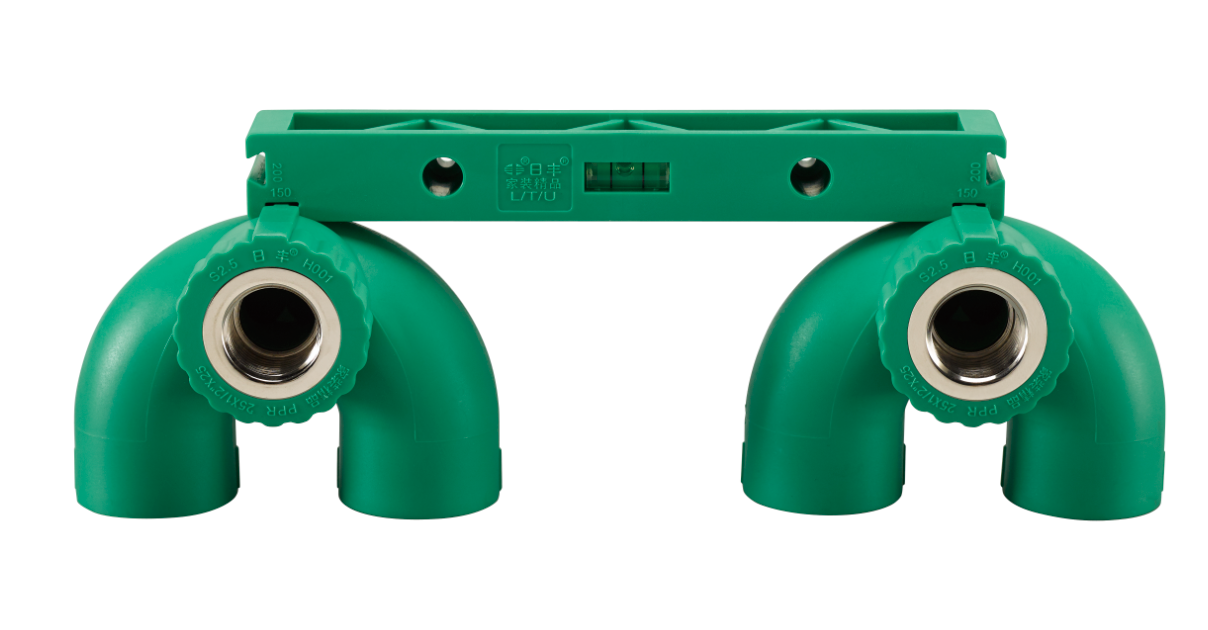

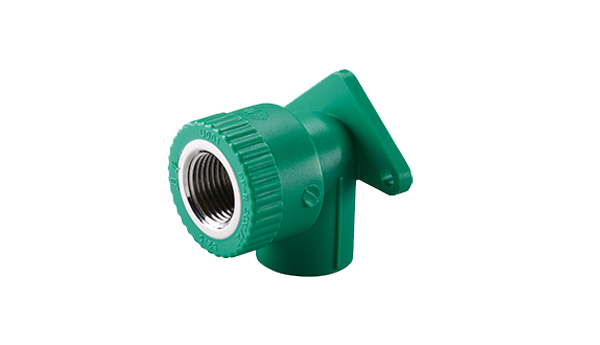

? The new U-profile tap elbow is ideal for hygiene-focused and water flow rate-optimized installations utilising various loop installation methods.
? Improved profile design allowing better flow rate.
? Easier and more adaptable installation.

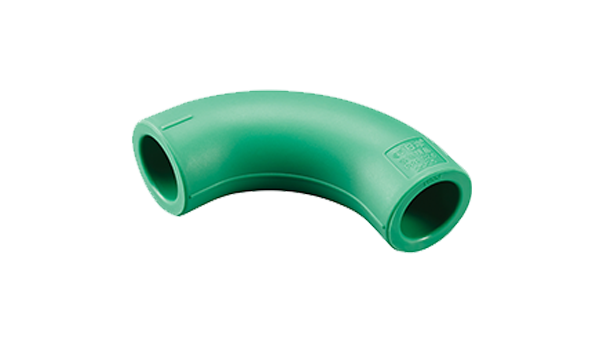

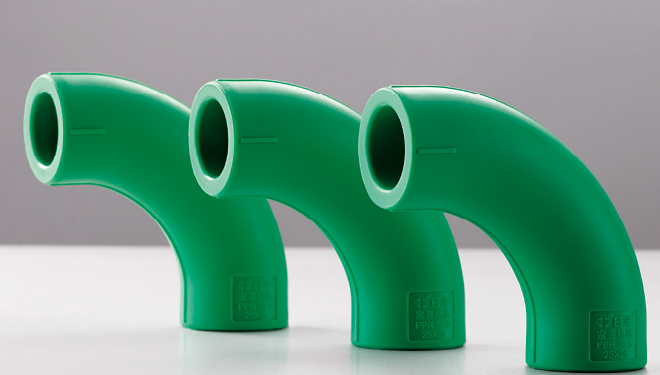

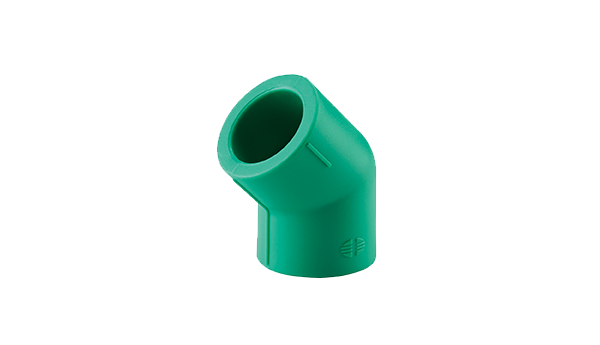

? Reducing 50% of the water resistance,with twice the arc,the water flow impact pressure wave is scattered and disappeared by the curved surface.
? Meanwhile, it avoids directly striking the fitting and causing damage.
?
?

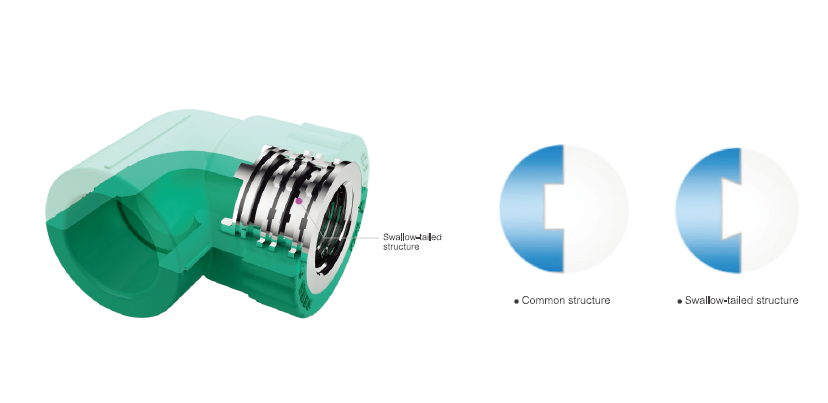

? The swallow-tailed structure ensures zero leakage，excellent air-proof performance and safer connections.
? 12 anti-skid teeth and 36 occlusion points to ensure that the metal and plastic parts are inlaid tightly.
? Multiple techniques enhance the pressure resistance and flexibility.
? The check ring is designed to prevent overtwisting.
? Sand-blasting process with high precision.
Technical specification
? Applied for potable water pipeline system with hygienic and non-toxic features.
? High temperatures and high pressure resistant.
? Heat preservation and energy saving during the flow.
? Lighter and more smoother than the metal pipe.
? The reliable and convenient connecting pipes and fittings by homogeneity melt.
? Notice free at high flow rates.

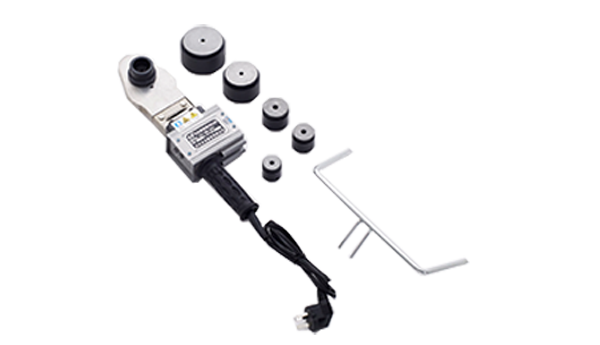

? Fusion technology's speed and ease of use.
? Significant time and labour savings.
? A long lifespan up to 25 years under normal conditions.
?
RIFENG PP-R piping system can be used in following applications:
? Cool and hot water distribution
? Pipes for connecting various types of low-temperature heating systems
? Pipes for solar energy system heating and cooling settings
? Cold water piping for air conditioners
?
? Potable water, hot and cold water, chemicals, irrigation
? Apartments, condominiums, and public housing
? Commercial shopping malls, as well as office buildings
? Chemical and food processing manufacturing plants
? Hospitals
? Schools, laboratories and chemical sewerage
? Hotels and resorts
NSF /ANSI /CAN 61 – about Health Effects of Drinking water system components
DVGW W 544 – about PP-R pipe general mechanical requirement
DVGW W 270 – about Hygienic property of material
UBA KTW – about Hygienic property of material odor test
DIN 8077 – about Polypropylene pipe dimension
DIN 8078 – about Polypropylene pipe general quality requirement and testing
EN ISO15874 – about Plastic piping system for hot and cold water installation
Certificates:
NSF – from USA, refers to NSF /ANSI /CAN 61
DVGW – from German, refers to DVGW W 544,UBA KTW,DVGW W 270
AENOR – from Spain, refers to EN ISO 15874
CE – from Europe, refers to EN ISO 15874
ISO 9001:2015 – “Quality management system”
ISO 14001:2015 – “Environmental management system”
ISO 45001:2018 – “Occupational health and safety management system”
??
???
??
? ??
?
| TYPE | PPR?Pipe | PVC?Pipe | Copper?pipe |
| Roughness(μm) | 0.4~1.0μm? ? ?? | 1.5mm | ≥2.0μm |
| Melting?point?（℃） | 145 | No?obvious?melting?point,?softening?point?around?85℃ | ＞900 |
| Density?（g/cm3） | 0.89～0.91 | 1.42 | 8.96 |
| Modulus?of?elasticity?（MPa） | 800 | 2900-3400 | 105-137?GPa |
| Thermal?conductivity?(w/mK) | 0.24 | 0.16 | 388～391 |
| Coefficient?of?thermal?expansion?(mm/mK) | 0.15 | 8*10-5 | 0.017 |
| ? | ? | ? | ? |
| Property | Test?Method | ?Unit? | Value |
| Melt?Flow?Rate | |||
| MFI?190/5 | ISO?1133 | g/10?dk.? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?? | 0.5 |
| MFI?230/2.16 | ISO?1133 | g/10?dk. | 0.3 |
| MFI?230/5 | - | g/10?dk. | 1.5 |
| Density?at?23℃ | ISO?1183 | g/cm3 | 0.9 |
| Tensile?Stress?at?Yield | ISO?527 | Mpa | 25 |
| Elongation?at?Break | ISO?527 | % | >50 |
| Modulus?of?Elasticity,?Tensile?Test | ISO?527 | N/mm2 | 900 |
| Impact?Strength?(Charpy) | |||
| 23℃ | ISO?179/1eU | Kj/m2 | No?failure |
| 0℃ | ISO?179/1eU | Kj/m2 | No?failure |
| -10℃ | ISO?179/1eU | Kj/m2 | No?failure |
| Notched?Impact?Strength?(Charpy) | |||
| 23℃ | ISO?179/1eA | Kj/m2 | 20 |
| 0℃ | ISO?179/1eA | Kj/m2 | 4 |
| -10℃ | ISO?179/1eA | Kj/m2 | 3 |
| Coefficient?of?Linear?Thermal?Expansion | DIN?53?752 | K-1 | 1.5×10-4 |
| Thermal?Conductivity?at?20℃ | DIN?52?612 | W/mK | 0.24 |
| Specific?Heat?at?20℃ | Adiabatic?Calorimeter | Kj/kg?K | 2 |

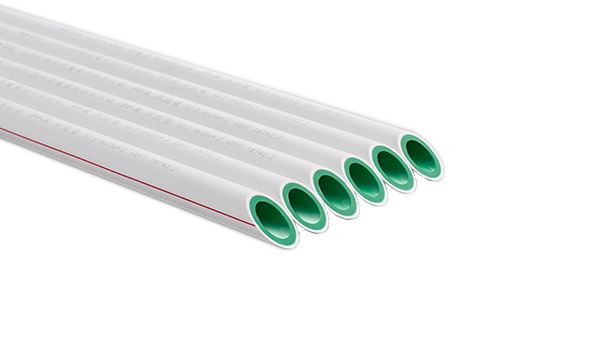

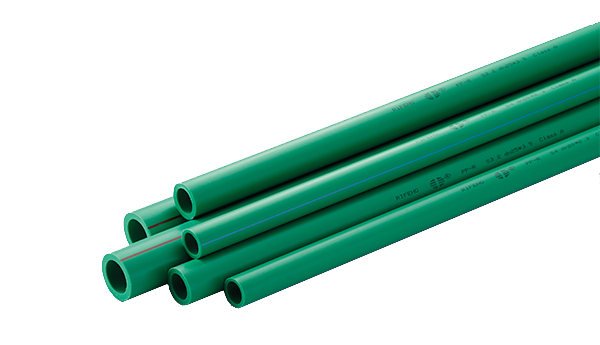

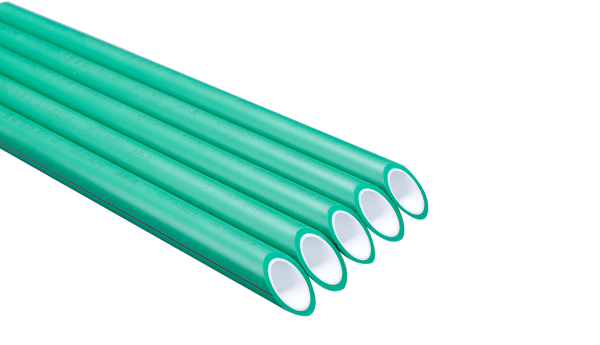

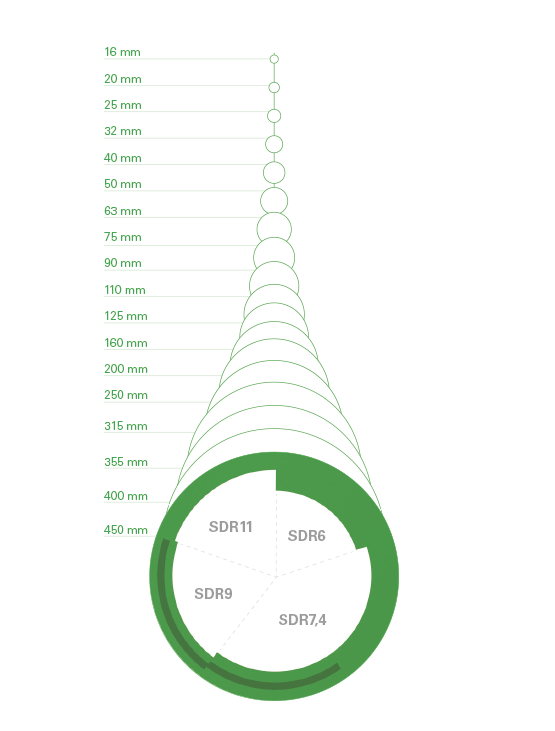

RIFENG PPR pipe provide the following SDR-sizes:
- SDR6
- SDR7.4
- SDR9
- SDR11

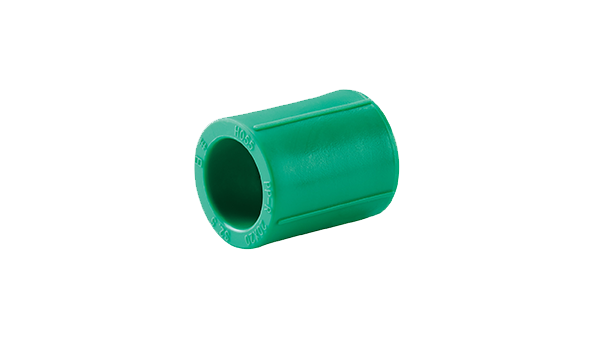

Homogeneity melting provides reliable connection strength and sealing property between PP-R pipes and PP-R fittings.

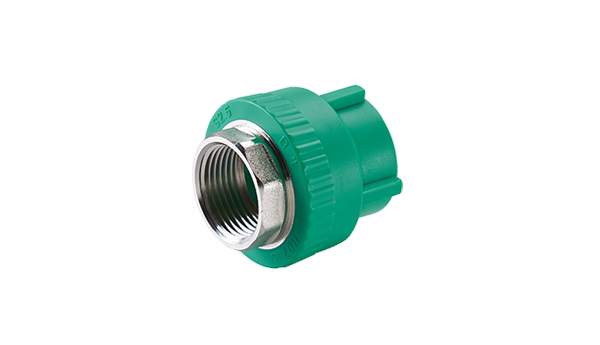

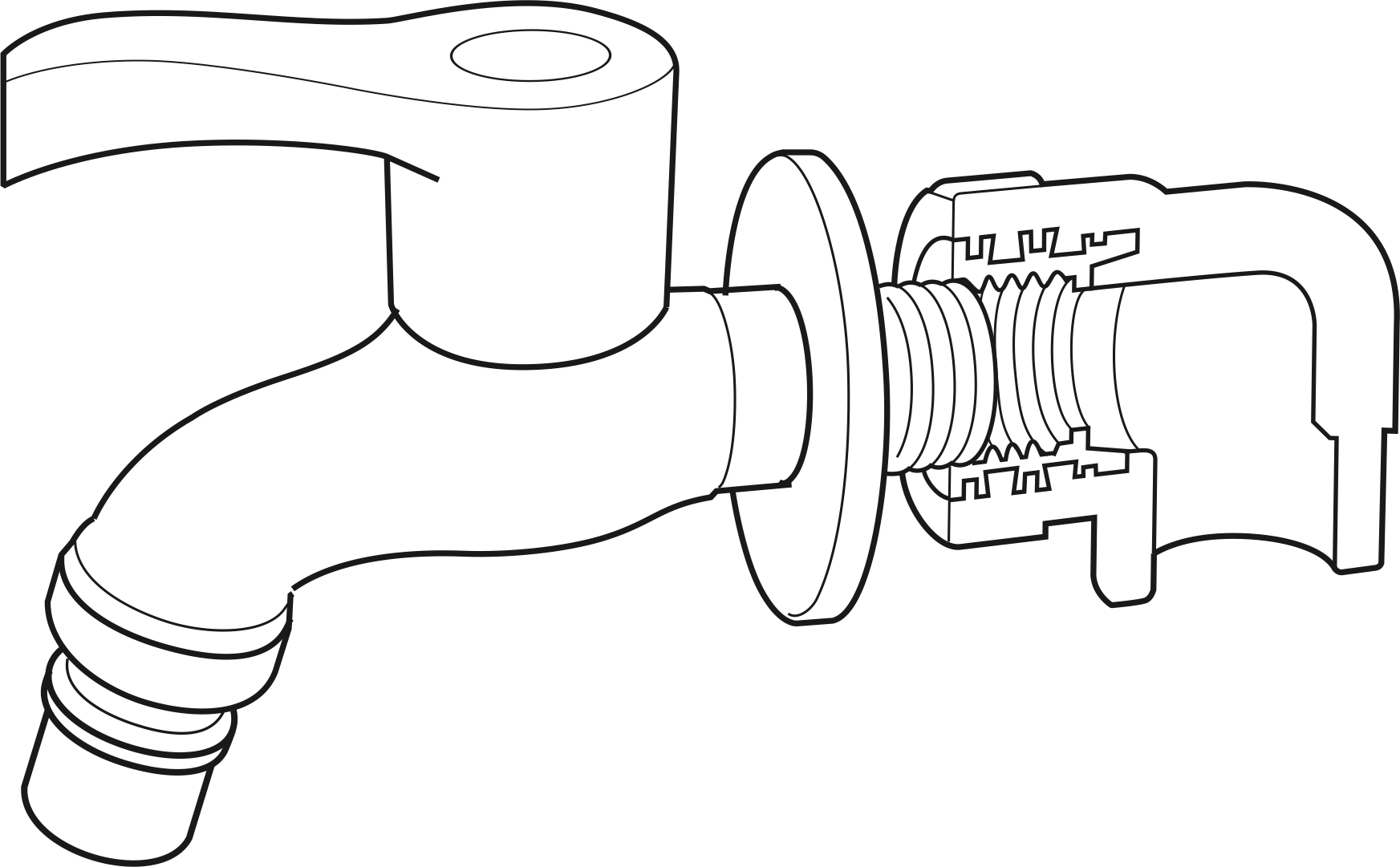

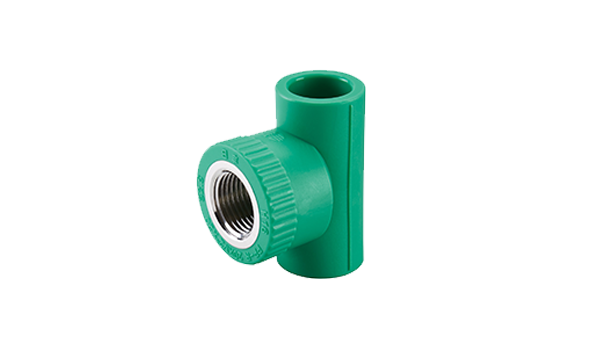

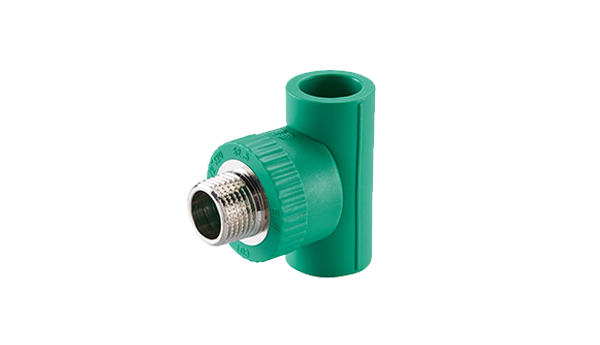

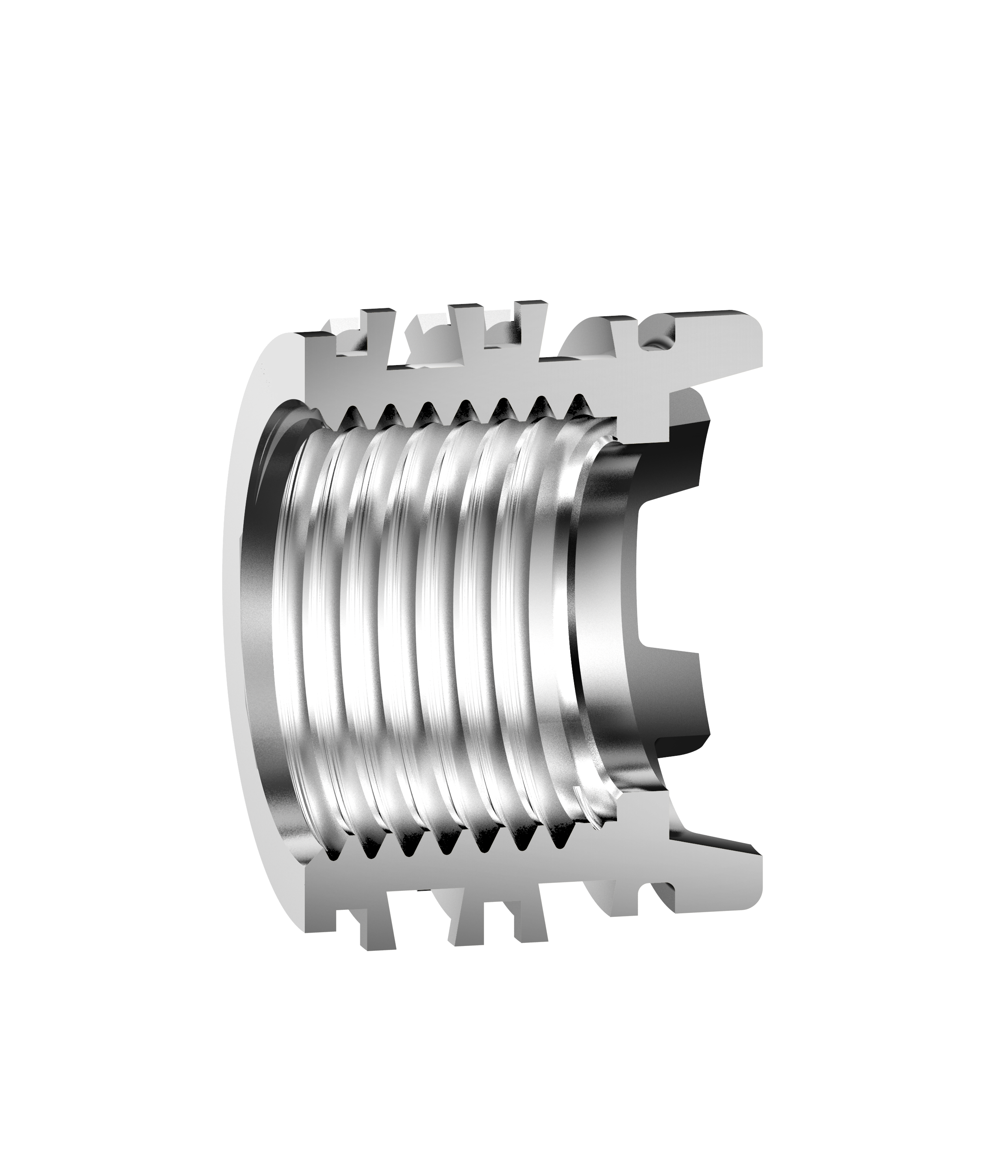

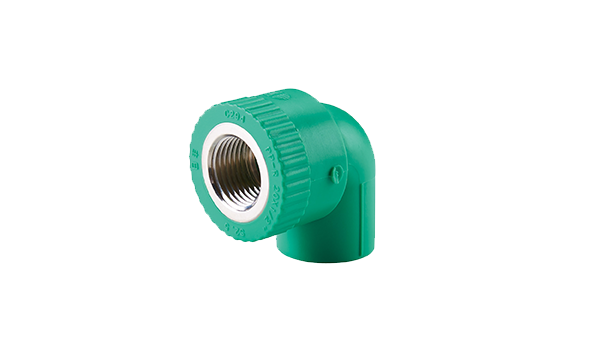

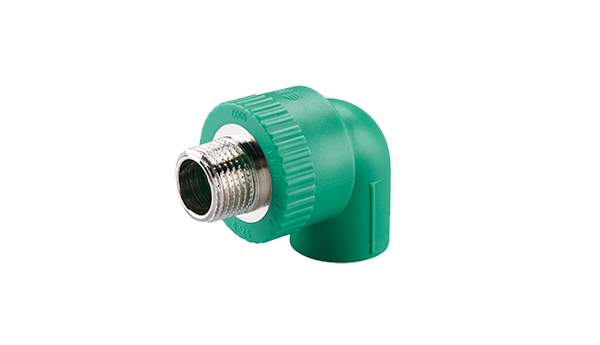

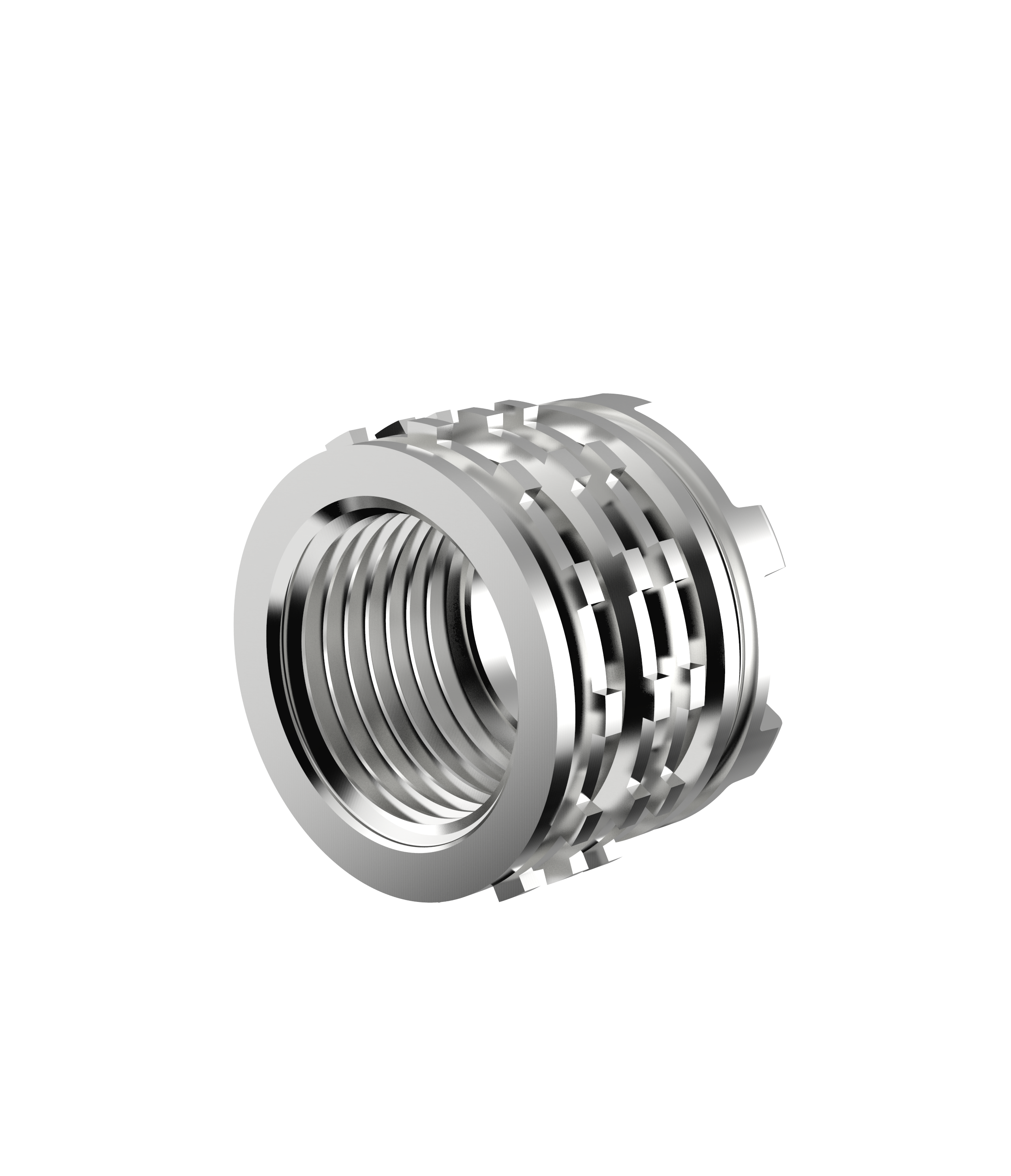

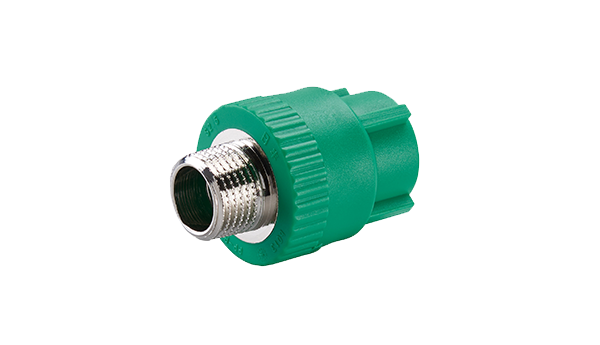

Metal thread connection
Rifeng holds the exclusive patent to manufacture these fittings.

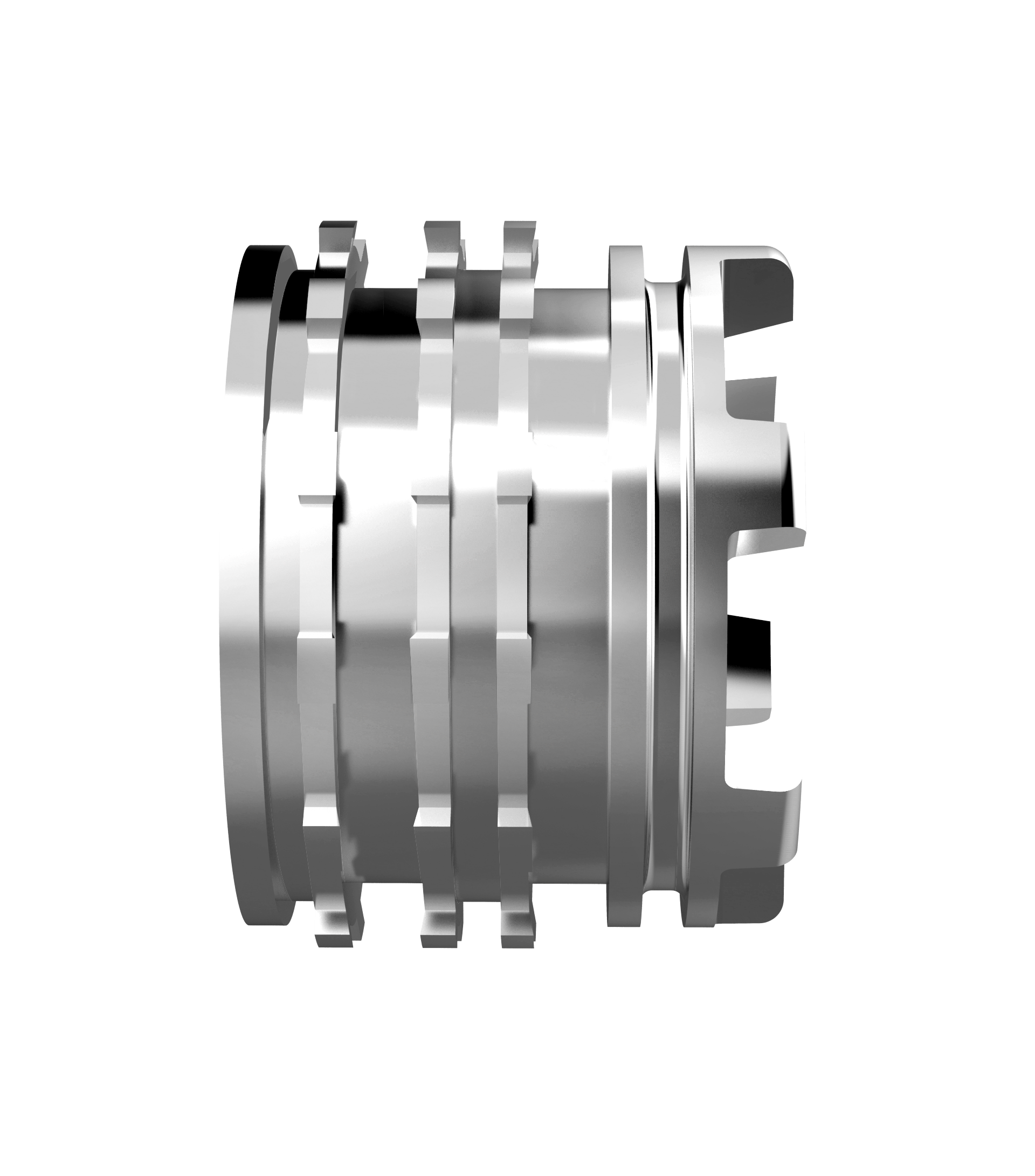

SWALLOW TAILED NOTCH?? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?36 BITING POINTS? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ??BUTTON SAFETY RING?? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ??
? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ??
? ? ? ? ? ? ? ? ? ? ? ? ?
? ? ???
